Enamel pins have become increasingly popular in recent years, adorning jackets, bags, and accessories with colorful designs and personal flair. While many people enjoy collecting and wearing these miniature works of art, have you ever wondered how they're made? In this comprehensive guide, we'll explore the fascinating world of enamel pin production, focusing on the machines and processes involved in creating these tiny treasures.
Before diving into the manufacturing process, it's essential to understand what enamel pins are and the different types available.
Enamel pins are small, decorative metal badges that feature designs filled with colored enamel. They come in two main varieties:
1. Soft enamel pins
2. Hard enamel pins
The primary difference lies in the manufacturing process and the final texture of the pin. Soft enamel pins have a textured surface with raised metal edges, while hard enamel pins have a smooth, glass-like finish.
Creating enamel pins involves several steps and specialized equipment. Let's break down the process and explore the machines used in each stage.
The first step in making enamel pins is creating the design. This is typically done using graphic design software such as Adobe Illustrator or CorelDRAW. The design must be vector-based to ensure clean lines and sharp details.
Once the design is finalized, it needs to be converted into a format that can be used by the manufacturing equipment. This often involves creating a die line or mold design that will guide the production process.

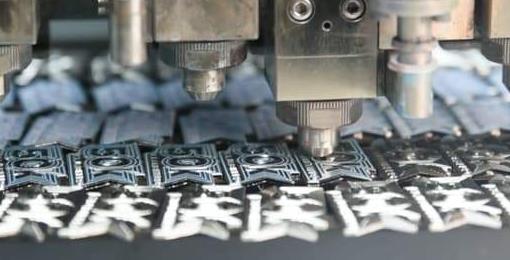

The next step involves creating the metal base of the pin. This is done using a die striking machine, which applies tremendous pressure to stamp the design onto a metal sheet.
The die striking machine consists of two main components:
1. The die: A hardened metal block with the negative of the pin design engraved into it.
2. The press: A powerful hydraulic or mechanical press that applies force to stamp the design.
The metal sheet, usually made of iron, copper, or brass, is placed between the die and the press. When activated, the press forces the metal into the die, creating the raised design of the pin.
After die striking, the pins need to be cut out from the metal sheet. This is done using a cutting machine, which can be either:
1. A hydraulic cutting press
2. A laser cutting machine
The hydraulic cutting press uses a die to punch out the pin shapes, while the laser cutting machine uses a high-powered laser to precisely cut the pins from the sheet.
To enhance the appearance and durability of the pins, they undergo a plating process. This involves applying a thin layer of metal, such as gold, silver, or nickel, to the surface of the pin. The plating process is typically done using an electroplating machine.
The electroplating machine consists of:
1. An electrolyte solution
2. Anodes made of the plating metal
3. A power supply
The pins are attached to a cathode and immersed in the electrolyte solution. When an electric current is applied, metal ions from the anodes are deposited onto the surface of the pins, creating a uniform plating layer.
The enamel application process differs depending on whether you're making soft or hard enamel pins.
Soft Enamel Pins:

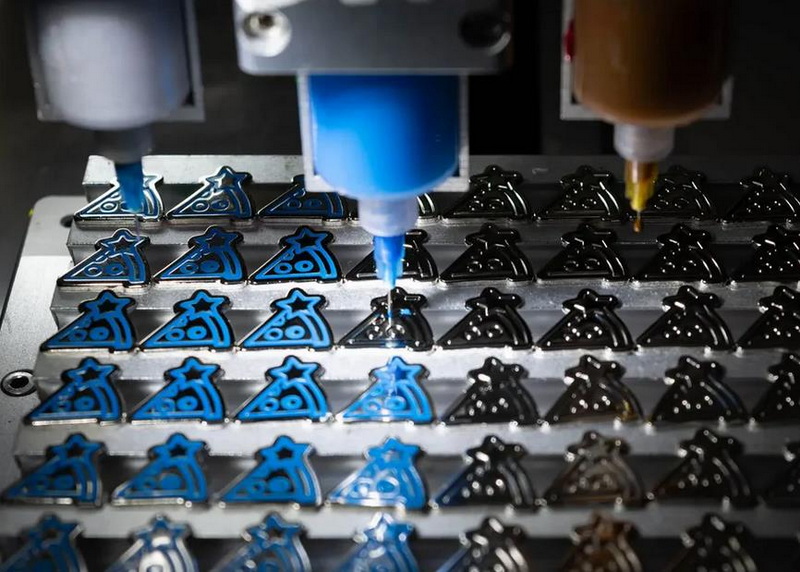

For soft enamel pins, the enamel is applied using a dispensing machine. This machine precisely deposits liquid enamel into the recessed areas of the pin design. The enamel is then left to dry and cure at room temperature or with the help of a low-temperature oven.
Hard Enamel Pins:
Hard enamel pins require a more complex process. The enamel is applied in a similar manner to soft enamel pins, but then the pins are fired in a kiln at high temperatures (around 800°C or 1472°F). This process causes the enamel to melt and fuse with the metal, creating a smooth, glass-like surface.
The kiln used for hard enamel pins is typically an industrial-grade electric furnace with precise temperature controls to ensure consistent results.
After the enamel has been applied and cured, the pins go through a polishing process to achieve a smooth, even surface.
For soft enamel pins, this involves using a polishing machine with a soft cloth wheel to gently buff the metal areas of the pin, leaving the enamel untouched.
Hard enamel pins require more extensive polishing. A series of grinding and polishing machines are used to level the enamel surface with the metal edges, creating a completely smooth finish.
The final step in the manufacturing process is attaching the pin backs. This is typically done using a soldering machine or a specialized pin back attachment machine.
The soldering machine uses heat to melt a small amount of solder, which bonds the pin back to the rear of the enamel pin. Some manufacturers use automated pin back attachment machines that can quickly and precisely attach pin backs to large quantities of pins.

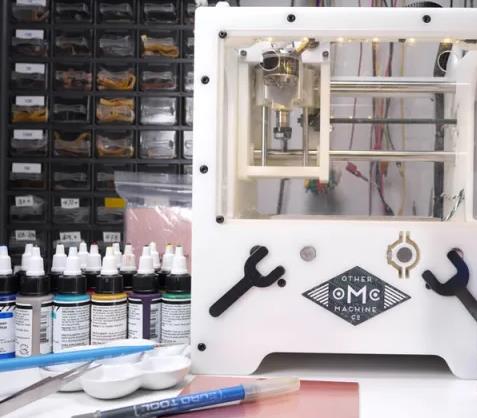

While industrial-scale enamel pin production requires specialized equipment, it's possible to create small batches of enamel pins at home or in a small workshop. Here are some methods and tools you can use:
3D printing technology has made it possible to create custom pin molds at home. You can use a 3D printer to create a mold of your pin design, which can then be used to cast the pin in metal or resin.
For a simpler approach, you can use etching techniques to create pin designs on metal blanks. This involves using chemicals or electrical current to etch the design into the metal surface.
While not technically enamel, you can create pin-like designs using resin casting. This involves creating a mold of your design and filling it with colored resin to achieve a similar effect to enamel pins.
For truly unique, one-of-a-kind pins, you can hand paint designs onto metal blanks using enamel paints. While time-consuming, this method allows for intricate designs and color combinations.
As technology continues to advance, we can expect to see innovations in enamel pin manufacturing. Some potential developments include:
1. Improved automation: More sophisticated machines that can handle multiple steps of the manufacturing process, increasing efficiency and reducing costs.
2. 3D printing advancements: As 3D printing technology improves, we may see more applications in enamel pin production, potentially allowing for more complex designs and faster prototyping.
3. Eco-friendly materials: With growing environmental concerns, manufacturers may develop more sustainable alternatives to traditional enamel and metal materials.
4. Digital customization: Online platforms that allow customers to design and order custom enamel pins directly, with automated systems handling the manufacturing process.
Creating enamel pins is a fascinating process that combines traditional metalworking techniques with modern manufacturing technology. From the initial design to the final polishing, each step requires specialized equipment and expertise to produce the high-quality pins we've come to love and collect.
Whether you're interested in large-scale production or looking to create your own unique pins at home, understanding the machines and processes involved can help you appreciate the craftsmanship behind these miniature works of art. As technology continues to evolve, we can look forward to even more innovative ways to create and customize enamel pins in the future.
Soft enamel pins have a textured surface with raised metal edges and recessed enamel areas. They are created by filling the recessed areas with enamel and curing it at a lower temperature. Hard enamel pins, on the other hand, have a smooth, glass-like surface where the enamel is level with the metal edges. They are made by applying enamel and then firing the pin at high temperatures, causing the enamel to melt and fuse with the metal.
While industrial-scale production requires specialized equipment, you can create small batches of enamel-like pins at home using methods such as 3D printing, etching, resin casting, or hand painting. These DIY methods may not produce the exact same results as professional manufacturing but can be a great way to create unique, custom pins.
The time required to manufacture enamel pins can vary depending on the complexity of the design, the quantity being produced, and the specific manufacturing process. Generally, the process can take anywhere from 2-4 weeks for a standard order. This includes time for design approval, die creation, manufacturing, quality control, and shipping.
Enamel pins are typically made using a base metal such as iron, copper, or brass. The metal is then plated with gold, silver, or nickel for a more attractive finish. The enamel used in the pins is a type of glass that is ground into a fine powder and mixed with pigments to create various colors. For soft enamel pins, epoxy resins are sometimes used instead of traditional enamel.
The cost of starting an enamel pin manufacturing business can vary widely depending on the scale of production you're aiming for. A small-scale operation using DIY methods might cost a few hundred to a few thousand dollars for basic equipment and materials. However, setting up a full-scale manufacturing facility with industrial equipment could cost anywhere from $50,000 to $500,000 or more, depending on the size and sophistication of the machinery.
